LINEA MINI 3

Tempered glass canopy

Mini Line Canopies

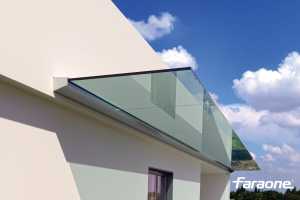

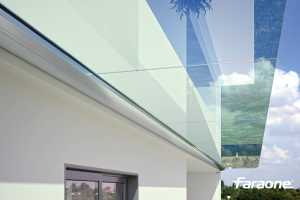

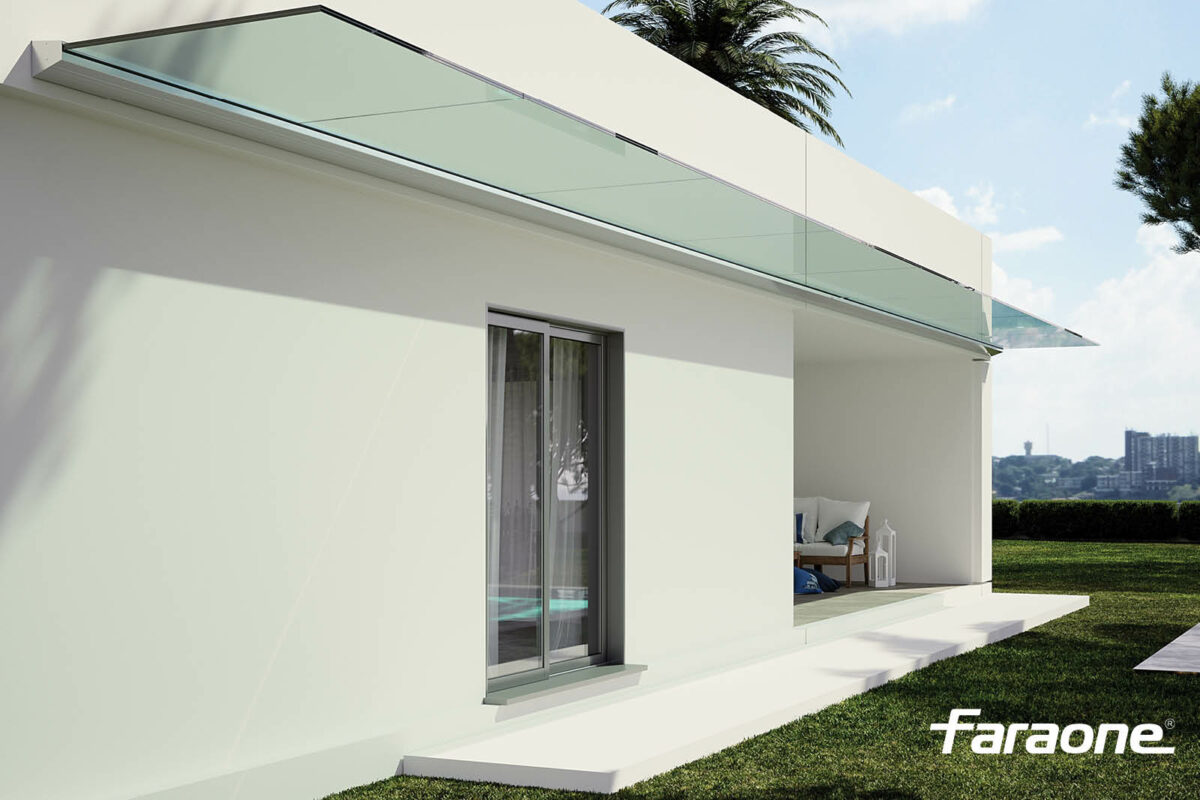

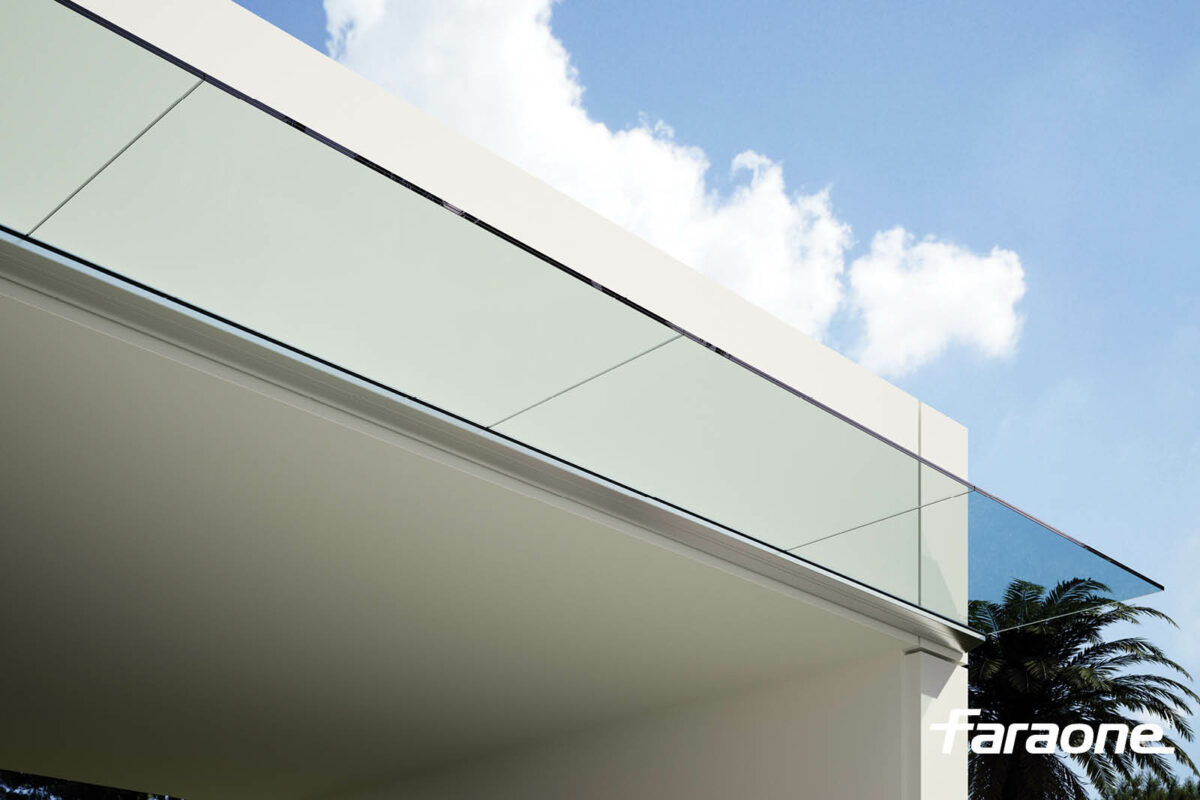

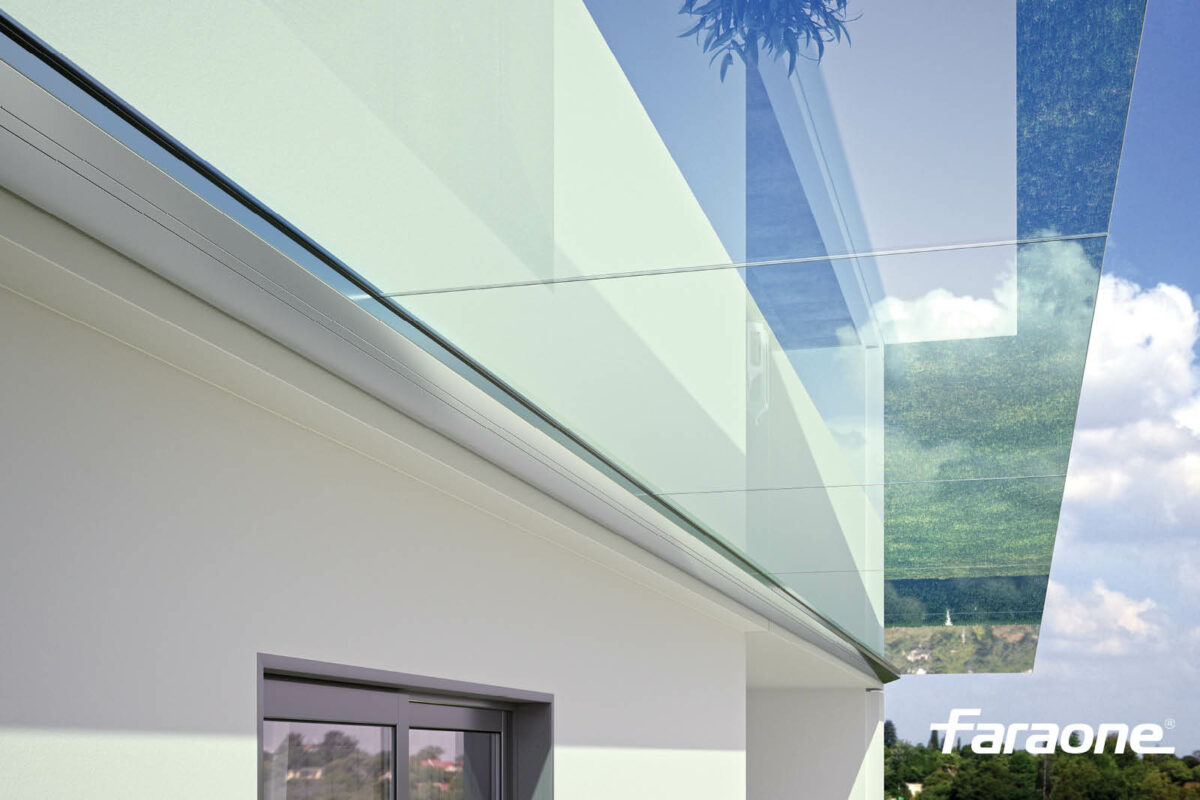

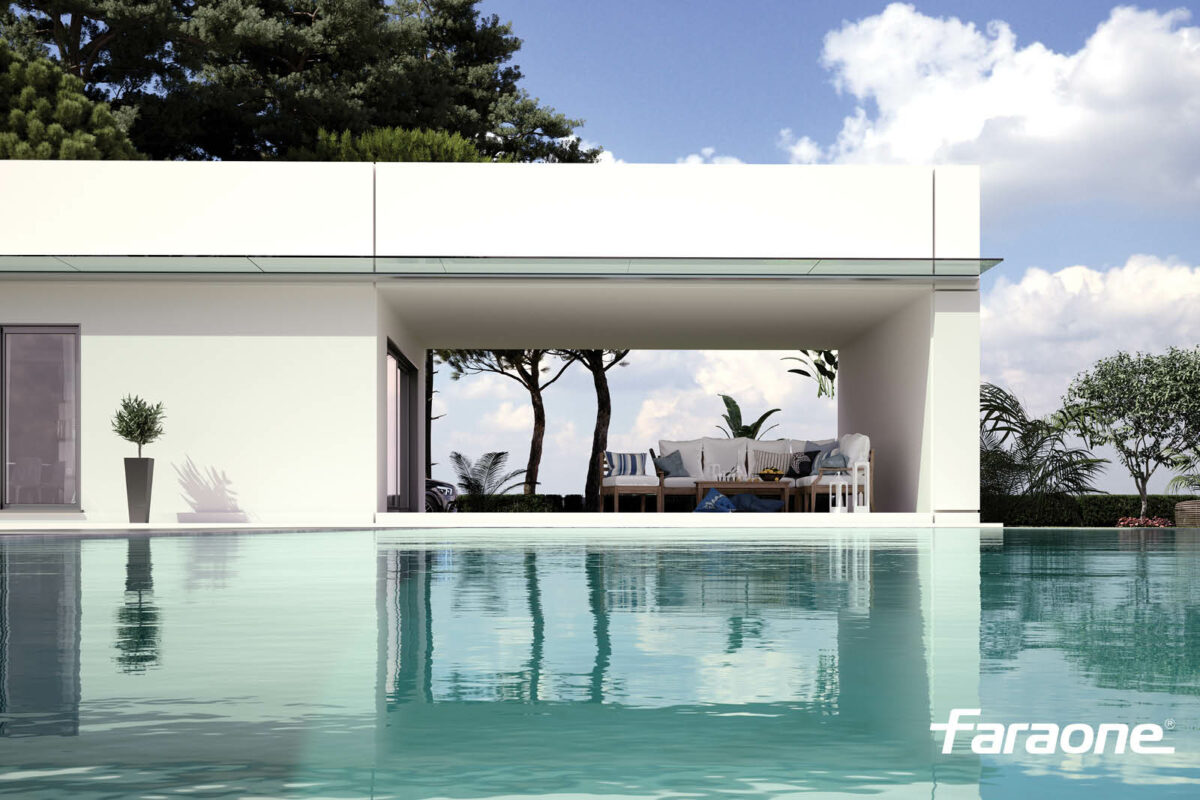

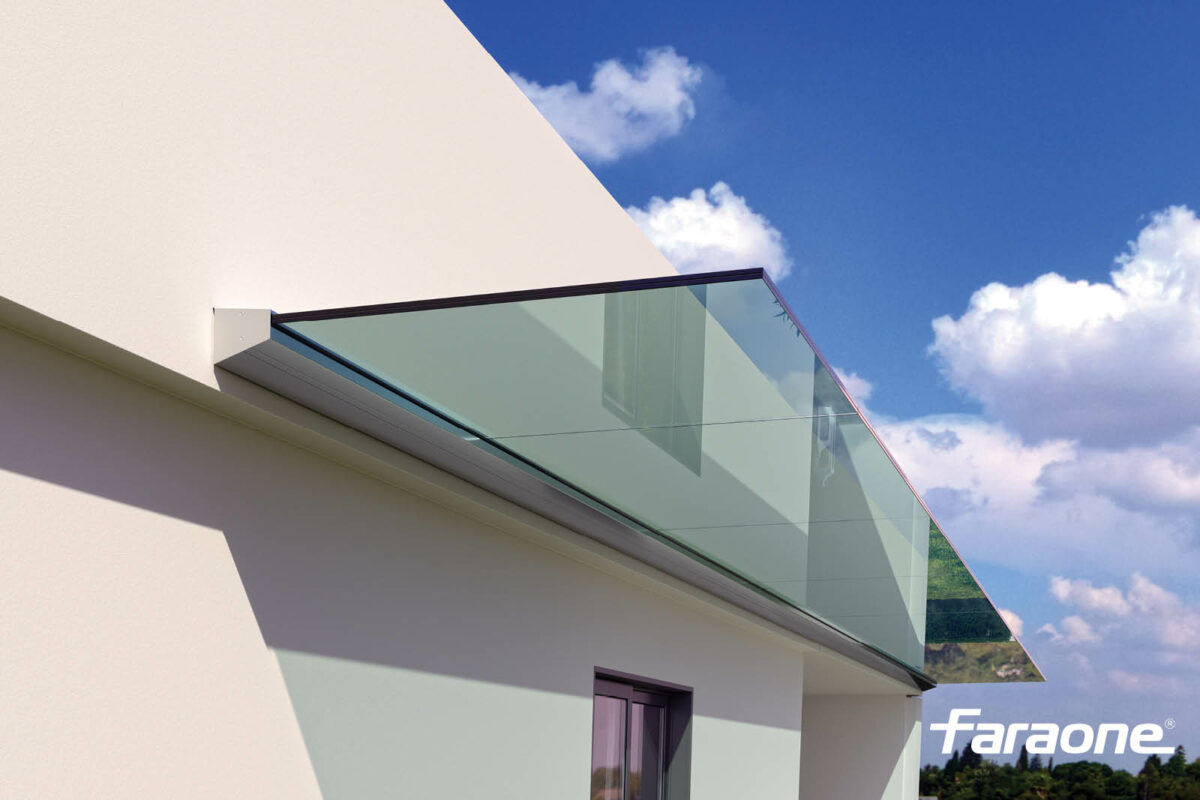

The Mini Line canopy is an architectural solution that combines innovation, safety, and design.

The 120 cm overhang is ideal for entrances of homes, windows, shops, balconies, pedestrian walkways, waiting areas, etc., providing protection from rain and snow or acting as a sunshade (opaque plastic or colored glass).

New anti-fall safety glass system is innovative and tested. No glass processing or notches (cost reduction).

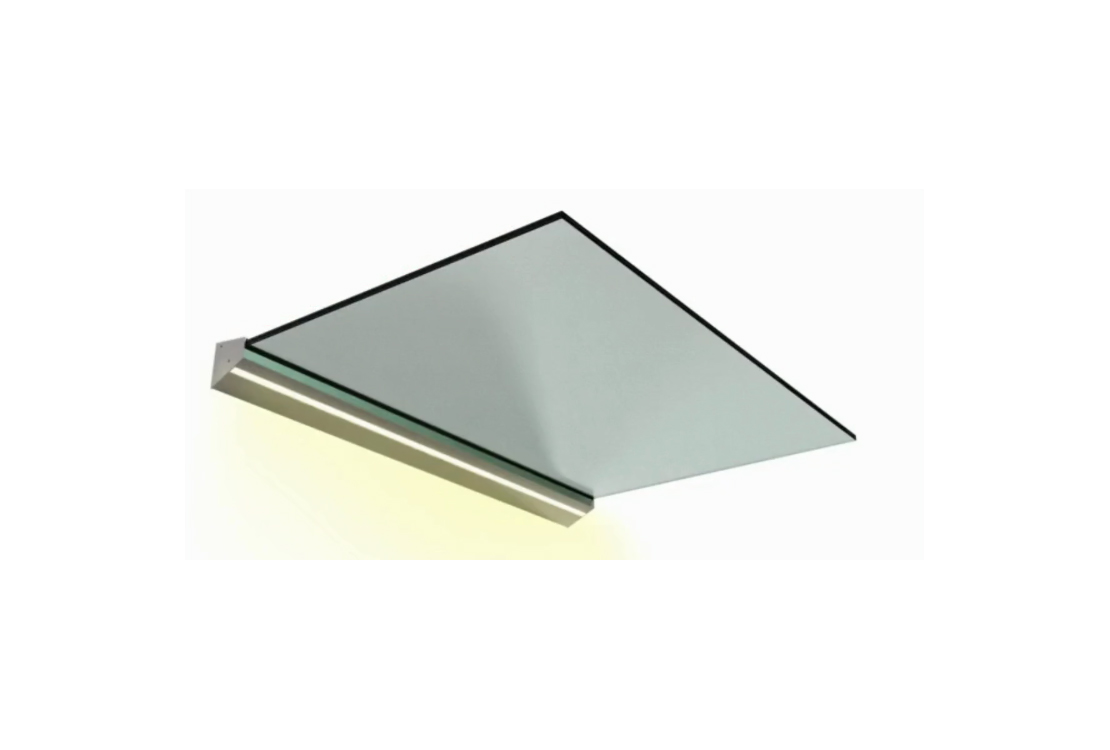

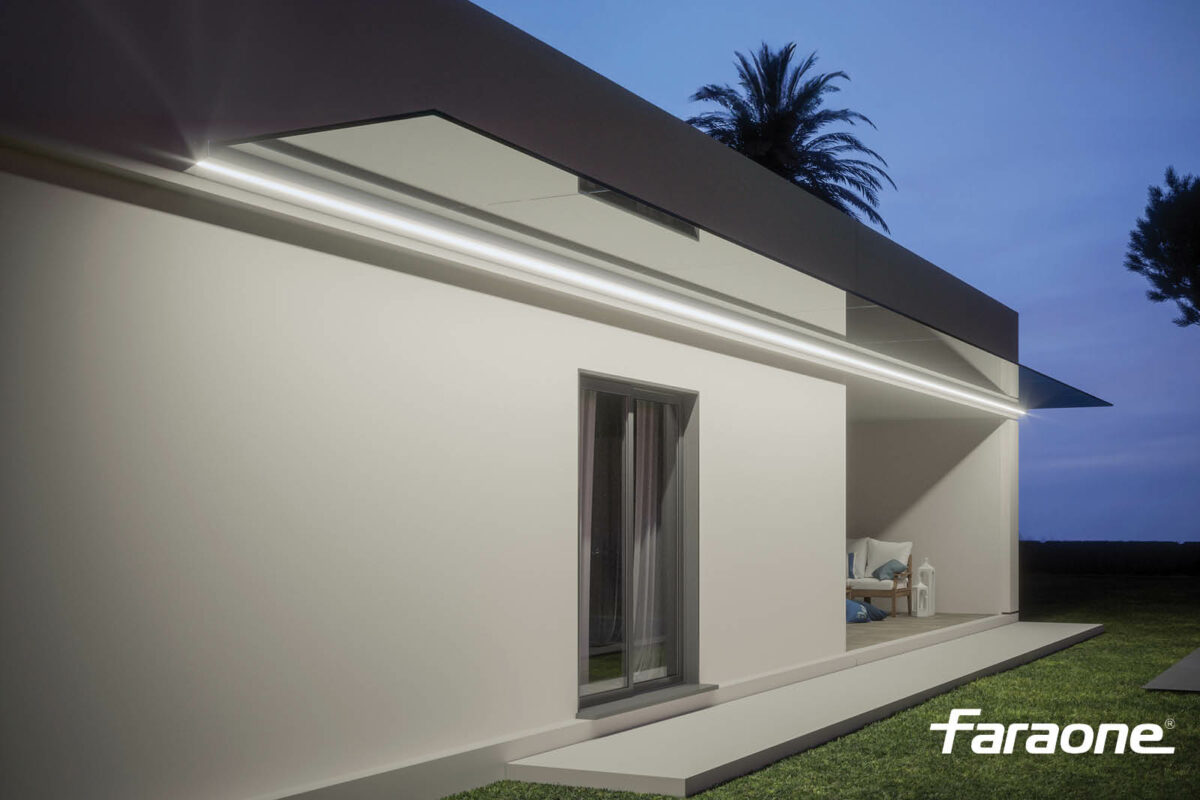

New external LED to illuminate the entrance area

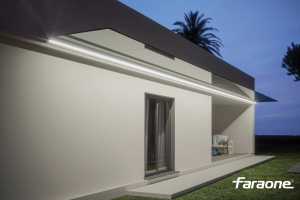

Mini Line LED, with an overhang of up to 120 cm, is the ideal external canopy solution to protect and illuminate doors, windows, entrances.
The system is designed to provide uniform and continuous lighting on the lower part of the canopy. The combination of durable materials and advanced lighting technologies ensures an optimal covering solution that enhances outdoor spaces while providing protection and elegance.

Dimensions: can be installed without length limits (supply of bars up to 6 meters that can be placed side by side), depth from 60 to 120 cm, profile height 95 mm. We recommend glass panels of up to 2 meters in length for easier installation.
Performance: resistance up to 1000 kg/m2
Structure: extruded aluminum profile, weather-resistant and corrosion-resistant, ensuring durability and structural stability.
Coverage: tempered safety glass with polished edges for optimal safety.
Glass type: laminated tempered glass 8+8+1.52+rigid plastic type 2 (SG, X-LAB, ABAR type), with a depth from 60 to 120 cm.

Profile Finishes:

Satin anodized silver
Matte white RAL 9010
Matte black RAL 9005
Over 2000 RAL colors available on request

Glass Finishes:
By customizing the glass, it is possible to achieve shading effects and sunshades through screen printing, digital printing, and a wide selection of colored glasses (from milk white to smoke, etc.). Many creative solutions to create decorative and design effects on the canopy, to be considered as a true "furniture product".

Intended Uses

Entrance doors
Windows
Entrance to premises
Garages
Pedestrian entrances

GALLERY

DOCUMENTS

Untitled Catalog

PDF

Faraone

Via Po, 12 64018 Salino TE Italia

[email protected]

+39 0861 784 200 www.faraone.it

The Faraone was founded in 1969 by the current President Sabatino Faraone. Today, the company is led by CEO Flavio Faraone.

Among the first in Italy to embrace the innovative technology of point-fixed glass fastening, laFaraone grows year after year, managing to promptly identify the trends and needs of current architecture, in order to best focus its range of Design products.

After over 50 years, the company continues to innovate the world of Transparent Architectures in Italy and abroad with glass balustrades, canopies, facades, doors, and glass partitions.

Thanks to its ability to intercept and meet market needs, it positions itself as the reference point for trendy and safe glass projects. In particular, in the glass balustrades sector, reaching over 1,100,000 meters installed from 2009 to date.
