MAIOR EVO VISION

Aluminum and glass railing

THE PARAPET THAT OFFERS CERTIFIED SAFETY WITH GLASS SUPPORTED BY HANDS

Model Maior Evo Vision with glass supported by hands.

✔ Tests passed with ground and frontal fixing
✔ Ideal for balconies, terraces, stairs, fences
✔ Maximum compositional freedom with customizable finishes of profiles and glasses

Optimized Design
Result of two years of design and development for a complete product in every detail. Rectangular section designed to maximize resistance to various combinations.

Simplified Installation
Range of new accessories for easy and smooth installation.

Contemporary Elegance
Minimal and rational design suitable for high architectural integration.

Customization:

Aluminum: over 2000 RAL colors available for aluminum profiles.
Glass: shading effects and sunshades with screen printing, digital printing, and colored glasses.

Certified Performance: Safety First

2000 mm Maximum Interaxis. For category C2 (200 kg/m SLE - 300 Kg/m SLU).
675 kg Maximum Load. On the single post in category C3.
450 kg/m Push Resistance. Tested in the laboratory.
600J Impact Resistance. Maximum guaranteed safety.

Post Distance

1500 post spacing for cat. C3
2000 post spacing for cat. C2

Handrail

Rectangular
Round

Post Height
Height from the ground 1100 mm

Glass Thickness:

8+8 Float Glass for cat. C2
8+8 Temp. Glass for cat. C3

Push Resistance
Tested up to 450 kg/m

Solution for Stairs and Floors

inclined
Possibility of installation on
slope (e.g. stairs, slides, etc...)

Request the Guide to the design of glass parapets created by Faraone

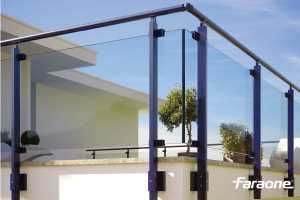

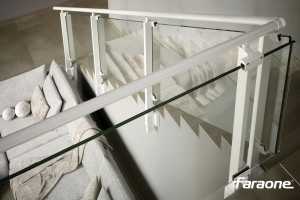

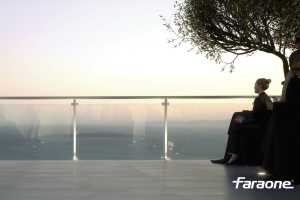

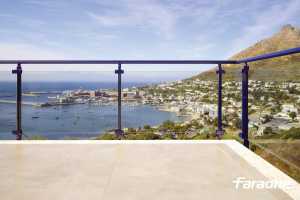

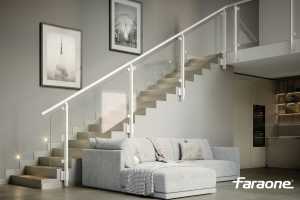

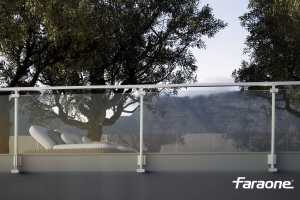

GALLERY

Faraone

Via Po, 12 64018 Salino TE Italia

[email protected]

+39 0861 784 200 www.faraone.it

The Faraone was founded in 1969 by the current President Sabatino Faraone. Today, the company is led by CEO Flavio Faraone.

Among the first in Italy to embrace the innovative technology of point-fixed glass fastening, laFaraone grows year after year, managing to promptly identify the trends and needs of current architecture, in order to best focus its range of Design products.

After over 50 years, the company continues to innovate the world of Transparent Architectures in Italy and abroad with glass balustrades, canopies, facades, doors, and glass partitions.

Thanks to its ability to intercept and meet market needs, it positions itself as the reference point for trendy and safe glass projects. In particular, in the glass balustrades sector, reaching over 1,100,000 meters installed from 2009 to date.
