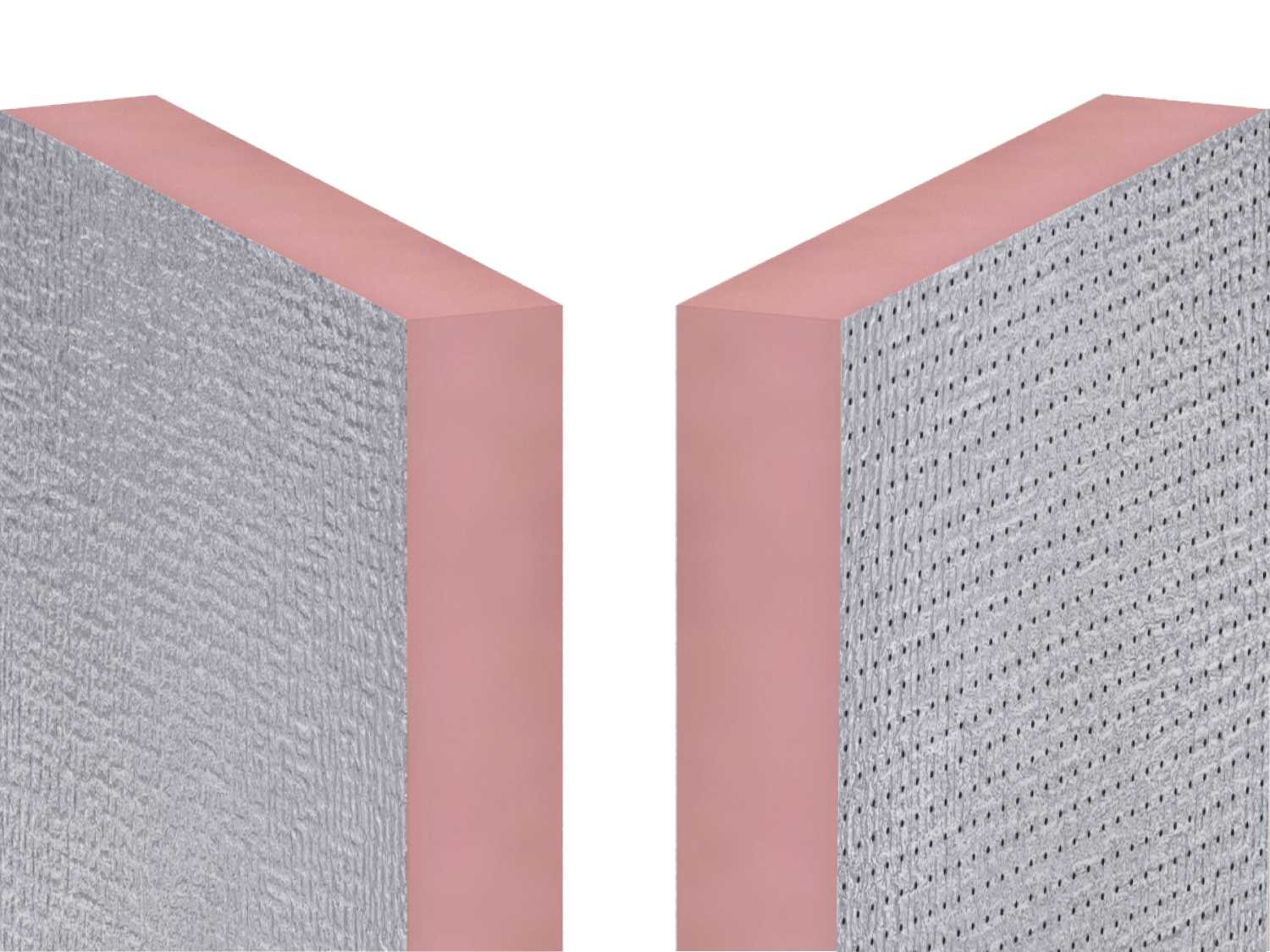

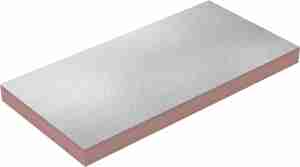

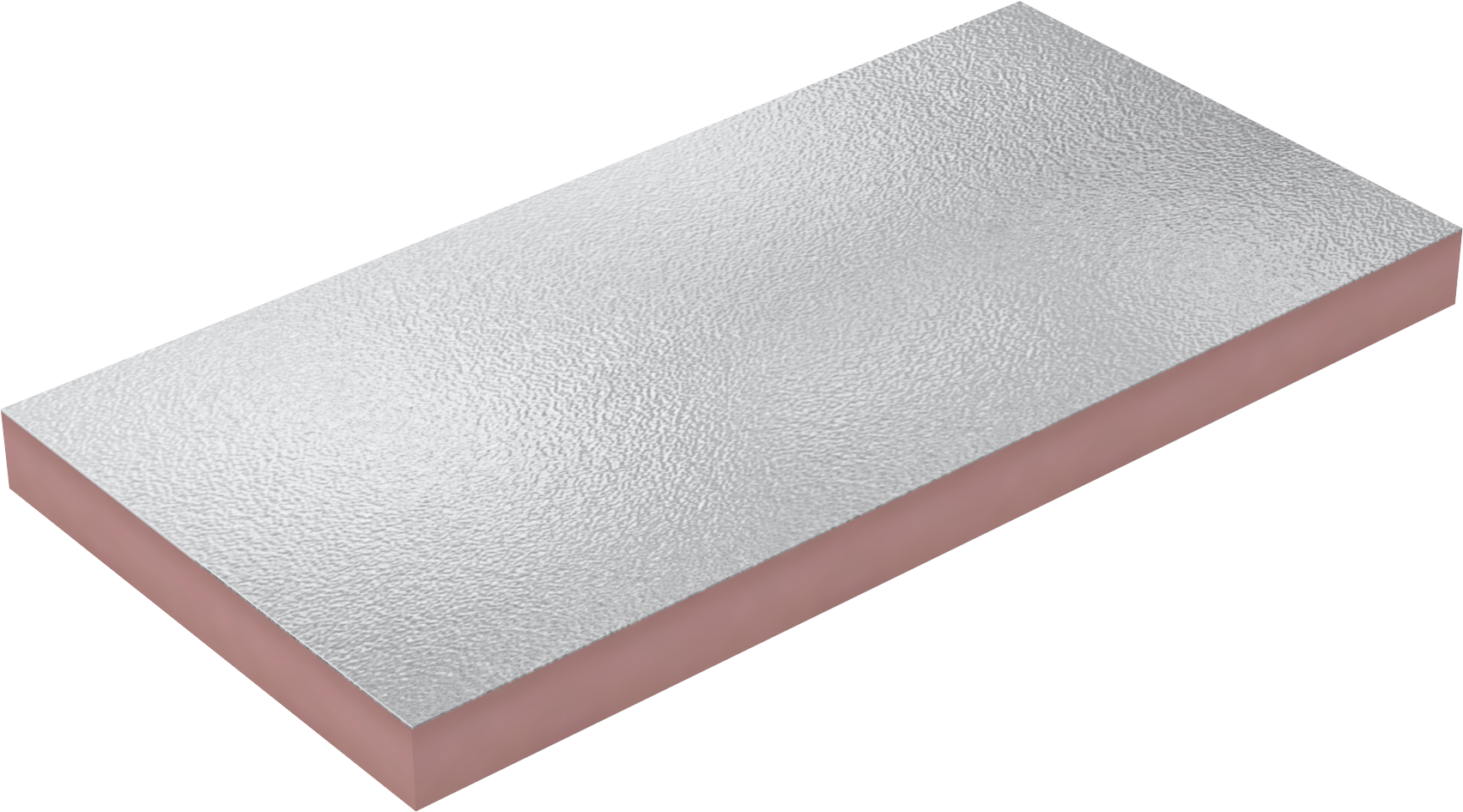

Supercel® AERIS

Phenolic resin insulation panel

Rigid insulation panel with double vapor barrier

Supercel® Aeris is a rigid insulation panel made of expanded phenolic resin with closed cells, coated with aluminum on both faces. The presence of the integrated double vapor barrier makes it particularly suitable for constructions that require a strict control of water vapor diffusion, reducing the risk of interstitial condensation.

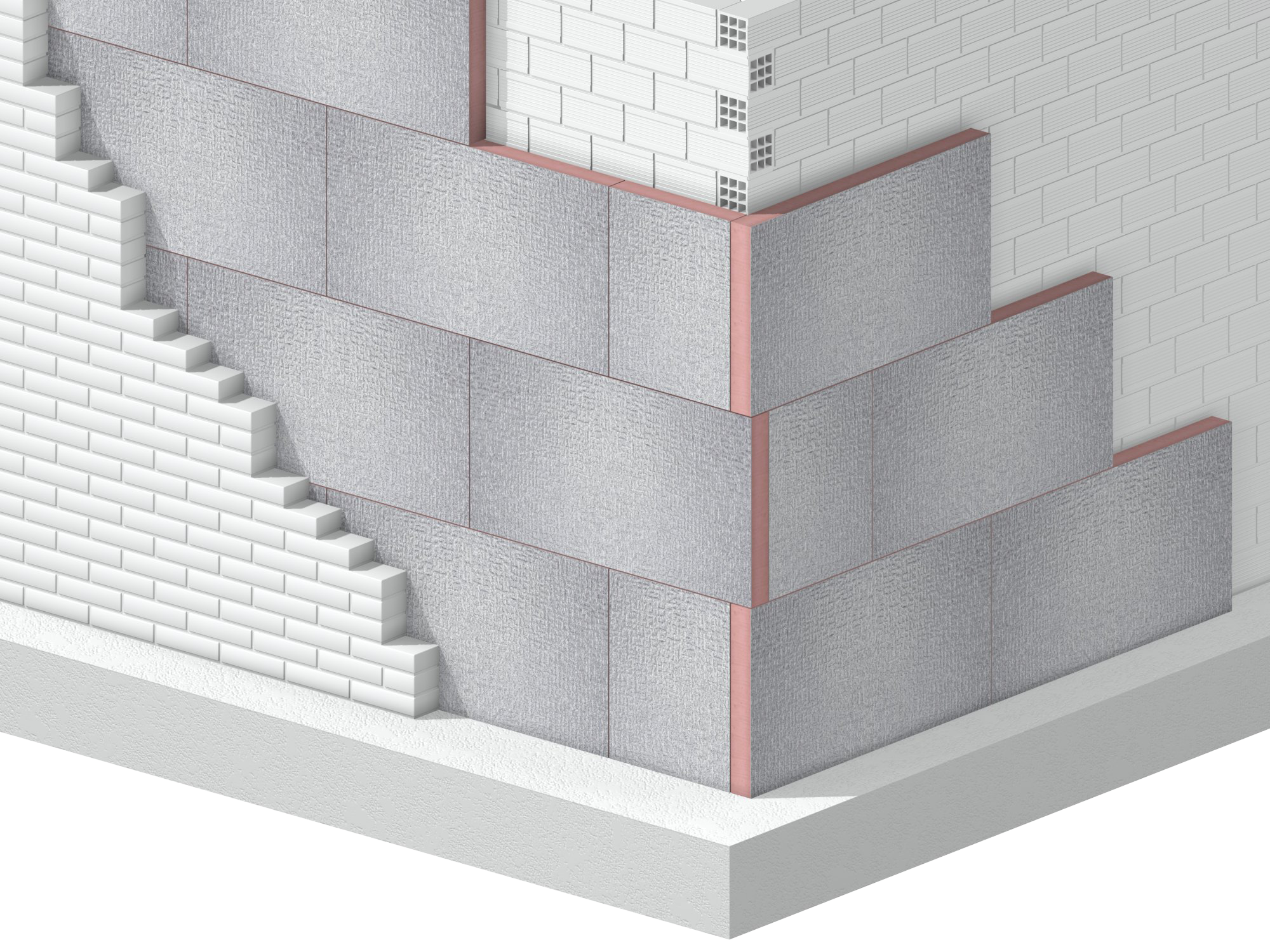

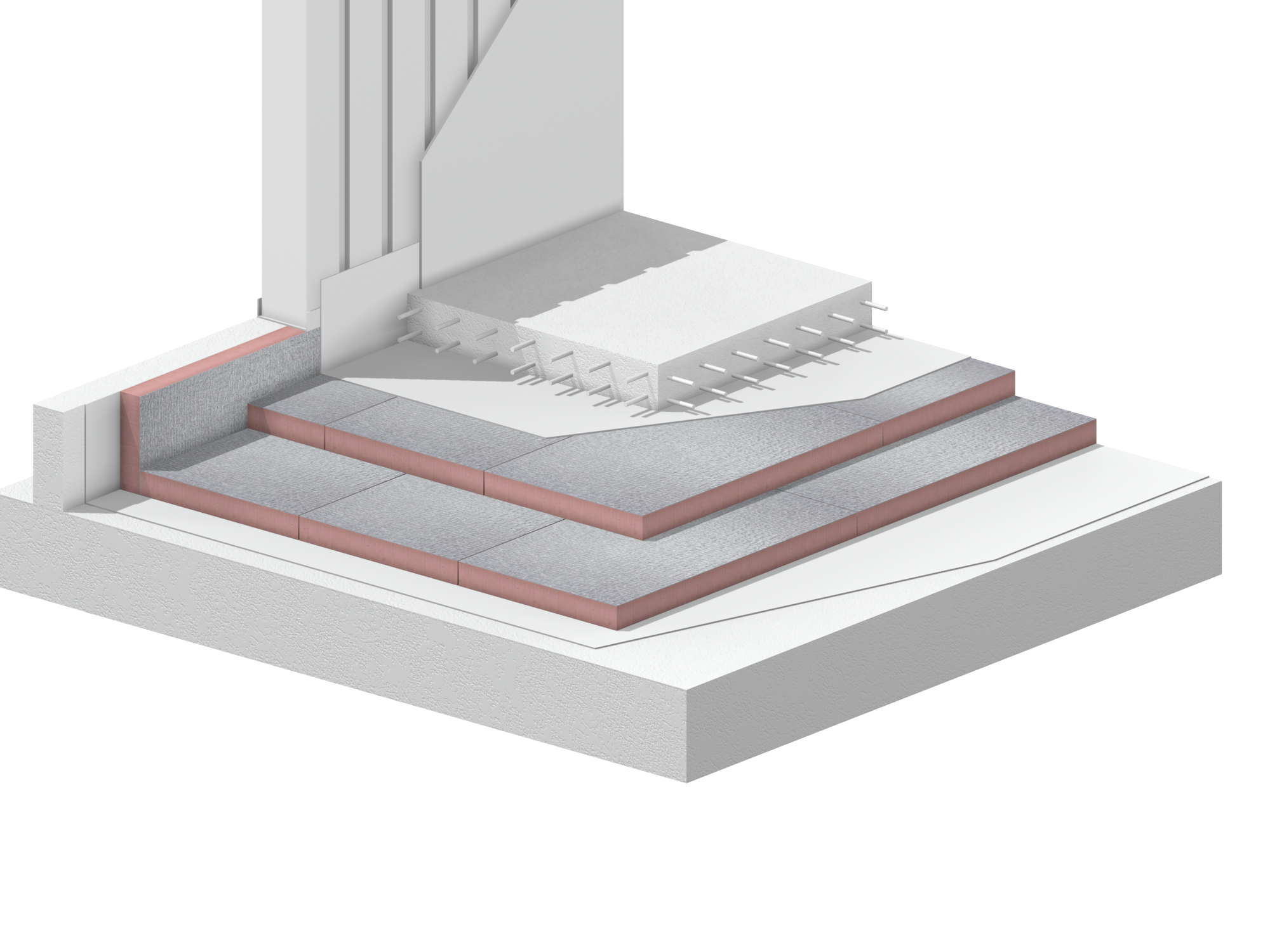

Applications in roofing and internal insulation

The panel is mainly used in roofs and internal insulation, especially in contexts where thermo-hygrometric conditions demand a high protection of the insulation and adjacent construction layers. The rigid structure and the continuity of the aluminum coating help preserve the thermal performance and barrier characteristics over time.

Safety and reliability in building stratigraphy

The choice of Supercel® Aeris is closely related to the position of the panel in the construction layers and the need to ensure safety, reliability, and durability even in complex operating conditions. The product serves as a targeted technical solution for projects where vapor control is a crucial requirement.

GALLERY

DOCUMENTS

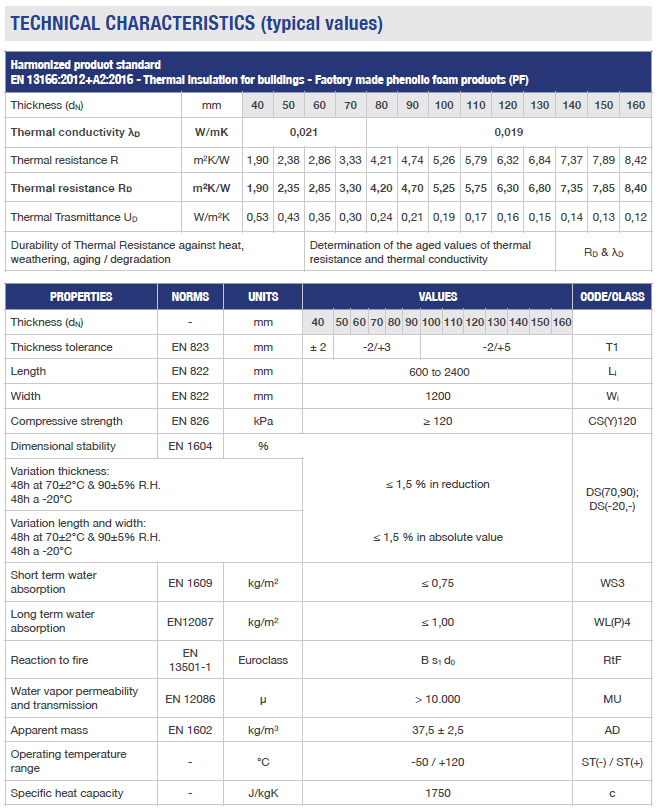

AERIS - Data Sheet

PDF

Resine Isolanti

Viale Zanotti 86, 27027 Gropello Cairoli (PV)

info@resineisolanti.com

+39 0382 81 59 79 www.resineisolanti.com

Resine Isolanti Group is an Italian industrial company established in 1929, specialized in the development and production of high-performance phenolic resin insulators. The SUPERCEL® Building Insulation range is designed to enhance the performance of the building envelope, with low thermal conductivity, controlled fire reaction, and long-term stability. An integrated industrial approach, supported by research and development and certified technical documentation, makes Resine Isolanti a reliable partner for architects and construction professionals.
