The shaped acoustic panel with rubber granules obtained from recycled ELTs with high mechanical performance
High acoustic performance, capable of ensuring stability over time for high loads up to 5000 kg/m² are the main characteristics of Point.

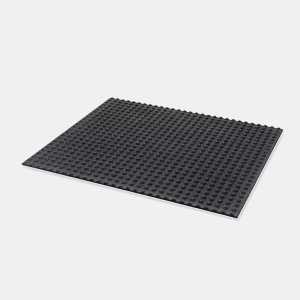

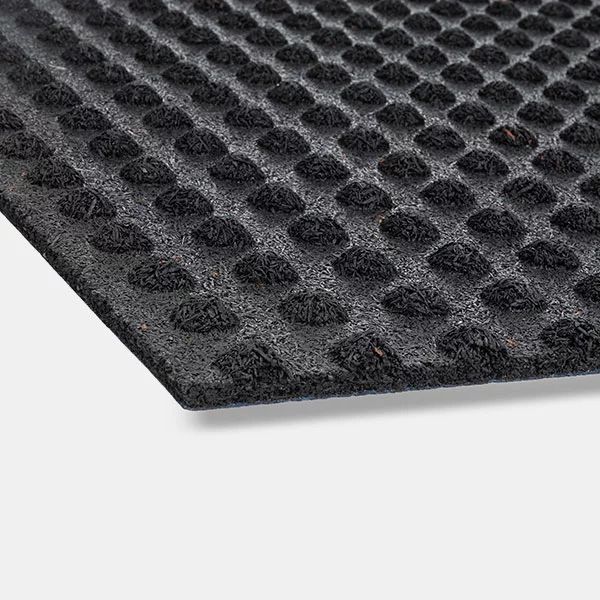

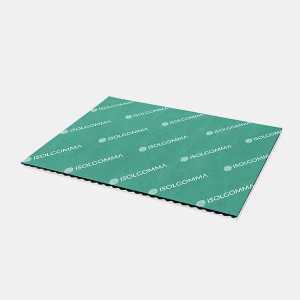

The panels of the acoustic insulator with high mechanical performance have a shaped surface with a total thickness of 18mm. The panel is composed of rubber fibers obtained from recycled ELTs agglomerated hot with polyurethane adhesive coupled with a non-woven tear-resistant polyethylene fabric in blue color on the upper side.
The panel dimensions are 1 m in width and 1.2 m in height, with a total surface mass of 6.7 kg/m². The dynamic stiffness is 16 MN/m³, the impact sound insulation 28 dB.
The accessories serving this insulator are:
⦁ Profyle, shaped decoupling and adhesive component, made of polyethylene.
⦁ Profyle Flat, vertical decoupling component made of adhesive polyethylene.
⦁ Stik HD, tape with enhanced adhesion, characterized by superior resistance to aging and weathering.
