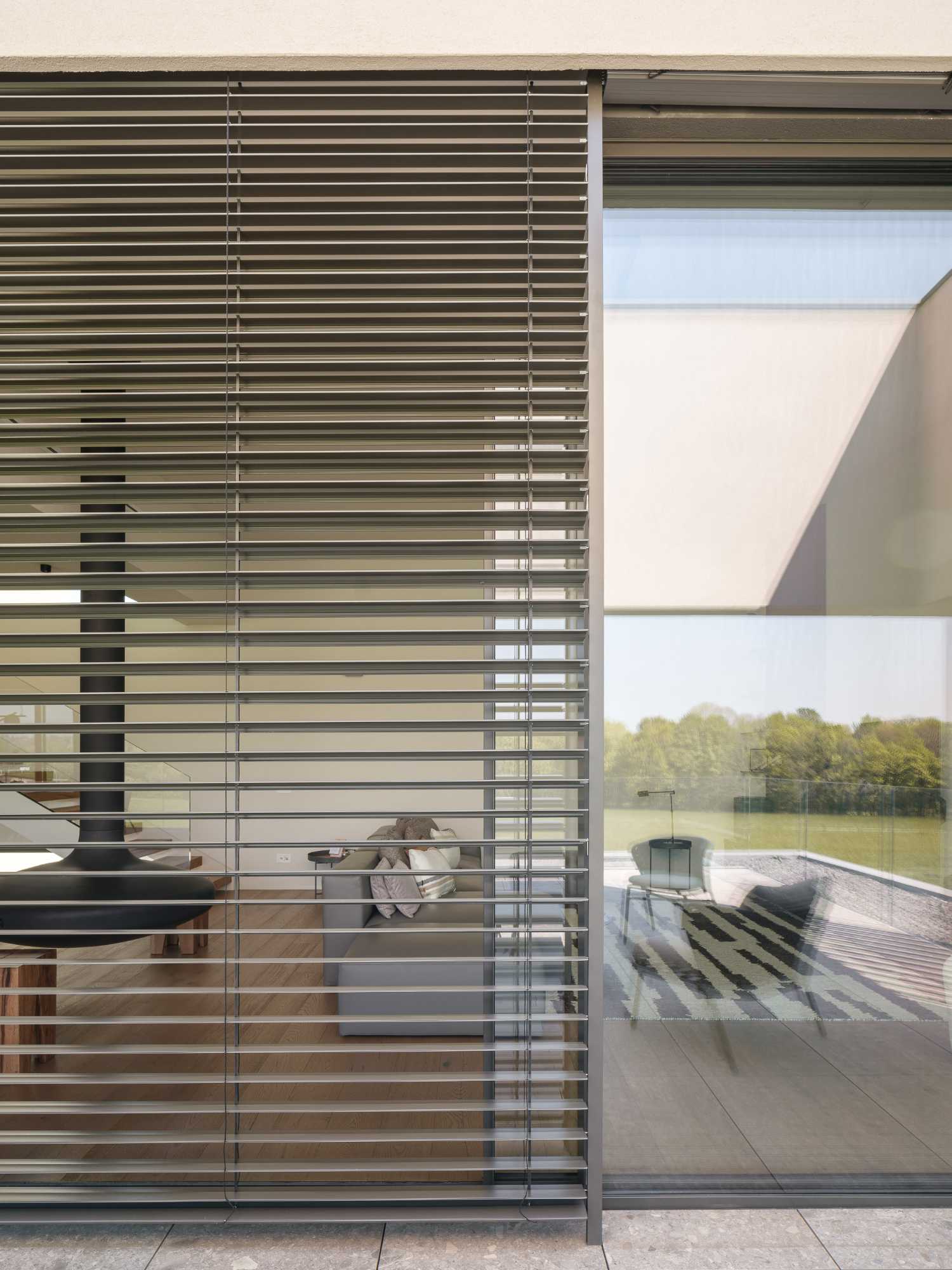

The System 90 is a wire-guided sun shading tent with adjustable "Z" blades, designed to ensure effective sun screening, light control, and environmental comfort in contemporary buildings.
Sun shading and visual comfort
The System 90 allows for precise management of natural light thanks to the adjustable blades from 0° to 90°, improving the thermo-visual comfort of indoor spaces. An ideal solution for residential and commercial buildings that require high performance and energy control.
Z-shaped blades for maximum efficiency
The pre-painted opaque aluminum blades, 90 mm wide and with a minimum thickness of 0.45 mm, feature a characteristic "Z" shape, designed to optimize shading and sun protection. The presence of anti-noise gaskets and lateral edging ensure greater resistance, stability, and silence.
Resistant and reliable operating system
The system is operated by 8 mm texband tapes, resistant to UV rays and certified for 100,000 cycles of use. The blade orientation is entrusted to Terilene cords with Aramid and Kevlar, fixed with stainless steel hooks that facilitate any maintenance operations.
Flexible installation solutions
The System 90 is designed to adapt to various design needs thanks to:
-
Extruded aluminum side guides (18 × 20 mm) with anti-noise gaskets
-
Option with stainless steel cable guide with spring system
-
Pre-painted aluminum terminal with telescopic caps
The upper channel in galvanized steel, inspectable, integrates the operating system with 230V 50 Hz motor and pre-set mechanical end stops.
Control options and certifications
The system can be configured with different operating modes:
-
Standard motorization
-
Winch operation
-
